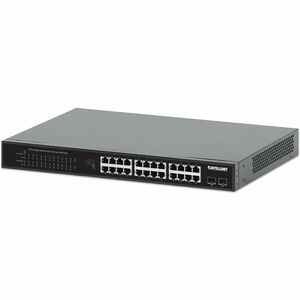

Intellinet 24-Port Gigabit Ethernet PoE+ Switch with 2 SFP Ports 561891

Intellinet 24-Port Gigabit Ethernet PoE+ Switch with 2 SFP Ports 561891
  • Item #:
  • Category:
  • Availability:
  • Packaging:
  • Platform:
  • Condition:
  • Brand:

For Government/Education/Business pricing, please call 440.355.8008


Your Price:
Qty:
  • Thumbnail 1 of 4
  • Thumbnail 2 of 4
  • Thumbnail 3 of 4
  • Thumbnail 4 of 4
Product Rating

0 star(s) (0 Ratings) Write a Review


General Information

Unmanaged PoE Switch with 26 ports - 24 RJ45 and Two SFP, High-Power PoE+

The Intellinet Network Solutions 24-Port Gigabit Ethernet PoE+ Switch with 2 SFP Ports passes both data and electrical power to a number of PoE-compatible devices via standard Cat5e or Cat6 network cables. Equipped with 24 Gigabit Ethernet ports, this switch can power wireless LAN access points and bridges, VoIP phones, IP video cameras and more while delivering network speeds up to 1,000 Mbps.

Power over Ethernet 802.3at

This high-powered switch supports the IEEE 802.3at protocol and can inject up to 30 watts of power per port. IEEE802.3af- or IEEE802.3at-compliant devices attached to the switch need no additional power to help avoid the time and expense of electrical rewiring and minimize the unsightly clutter of power supplies and adapters on ceilings and walls. Any mix of PoE and non-PoE devices is supported, and thanks to its short-circuit, overload and high-voltage protection function, your equipment is well-protected. For devices that are not 802.3at/af compliant (legacy wireless access points or network cameras), we suggest the use of an Intellinet Network Solutions PoE/PoE+ Splitter.

Eliminate Bottlenecks with 26 Gigabit Ports

Equipped with 24 auto-sensing 10/100/1000 Mbps RJ45 Gigabit Ethernet ports, this switch offers plenty of performance for your computers, servers and other networking devices. In addition, two small form-factor pluggable (SFP) GBIC module slots provide fiber connectivity for greater distances. These are not shared combo-ports but true Gigabit ports, pushing the total available bandwidth up to 52 Gbps.

Interfaces/Ports
Total Number of Network Ports:24
Port/Expansion Slot Details:24 x Gigabit Ethernet PoE+
Port/Expansion Slot Details:2 x Gigabit Ethernet Expansion Slot

Media & Performance
Media Type Supported:Twisted Pair
Media Type Supported:Optical Fiber
Ethernet Technology:Gigabit Ethernet
Network Technology:10/100/1000Base-T
Network Technology:1000Base-X

I/O Expansions
Number of Total Expansion Slots:2
Expansion Slot Type:SFP
Number of SFP Slots:2

Network & Communication
Layer Supported:2
Networking Standards:IEEE 802.3
Networking Standards:IEEE 802.3ab
Networking Standards:IEEE 802.3az
Networking Standards:IEEE802.3af
Networking Standards:IEEE 802.3at
Networking Standards:IEEE 802.3u
Networking Standards:IEEE 802.3x

Management & Protocols
Manageable:No

Power Description
PoE (RJ-45) Port:Yes
PoE Budget:370 W
Input Voltage:120 V AC
Input Voltage:230 V AC
Frequency:50 Hz
Frequency:60 Hz
Power Source:AC
Power Source:Power Supply
Power Source:PoE+
Power Consumption:400 W

Physical Characteristics
Product Material:Metal
Form Factor:Rack-mountable
Height:1.7"
Width:17.3"
Length:8.2"
Weight (Approximate):7.43 lb

Miscellaneous
Package Contents:
  • 24-Port Gigabit Ethernet PoE+ Switch with 2 SFP Ports
  • Power Cable
  • Instructions
  • 19" Rackmount Brackets
Application/Usage:VoIP Phone
Application/Usage:IP Camera
Application/Usage:Wireless Access Point
Application/Usage:Network
Environmentally Friendly:Yes
Environmental Certification:RoHS

Warranty
Limited Warranty:3 Year

WARNING: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.
Be the first to review this product. Write a Review
Shipping Restrictions
  • This item cannot be shipped to PO Boxes.
  • This item can be shipped only within the U.S.

Special Order Item

This item ships directly from the manufacturer and is not stocked in our warehouse. If stock is available at the manufacturer, the item will ship directly to you, usually within 7 - 15 business days.

Once the order has been sent to the manufacturer it can no longer be canceled.

If payment is made via credit card it will be charged before the order is sent to the manufacturer.

You must contact the manufacturer directly regarding returns and defective items.

We will contact you by email if the item is sold out or backordered (and we were unable to update the site before you placed the order) or if the item will be delayed longer than expected.

We have no control over the speed of the manufacturer's order processing, or whether they will honor your request to ship the item by any particular method.



  • UPC: 766623561891
  • Mfr's Part #: 561891
